Description

Features and functions:

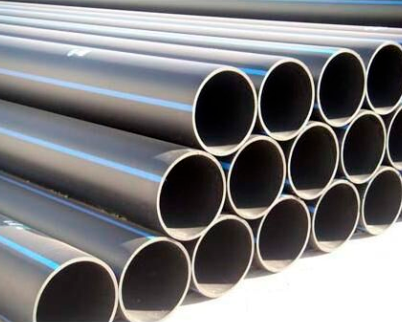

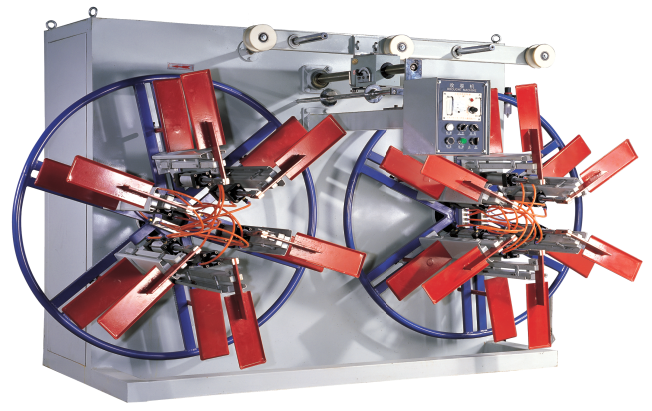

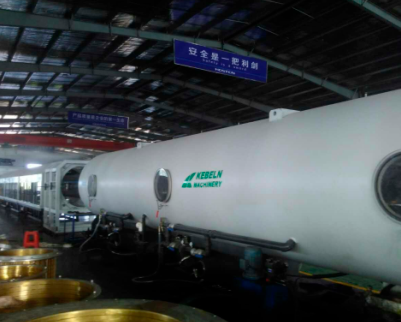

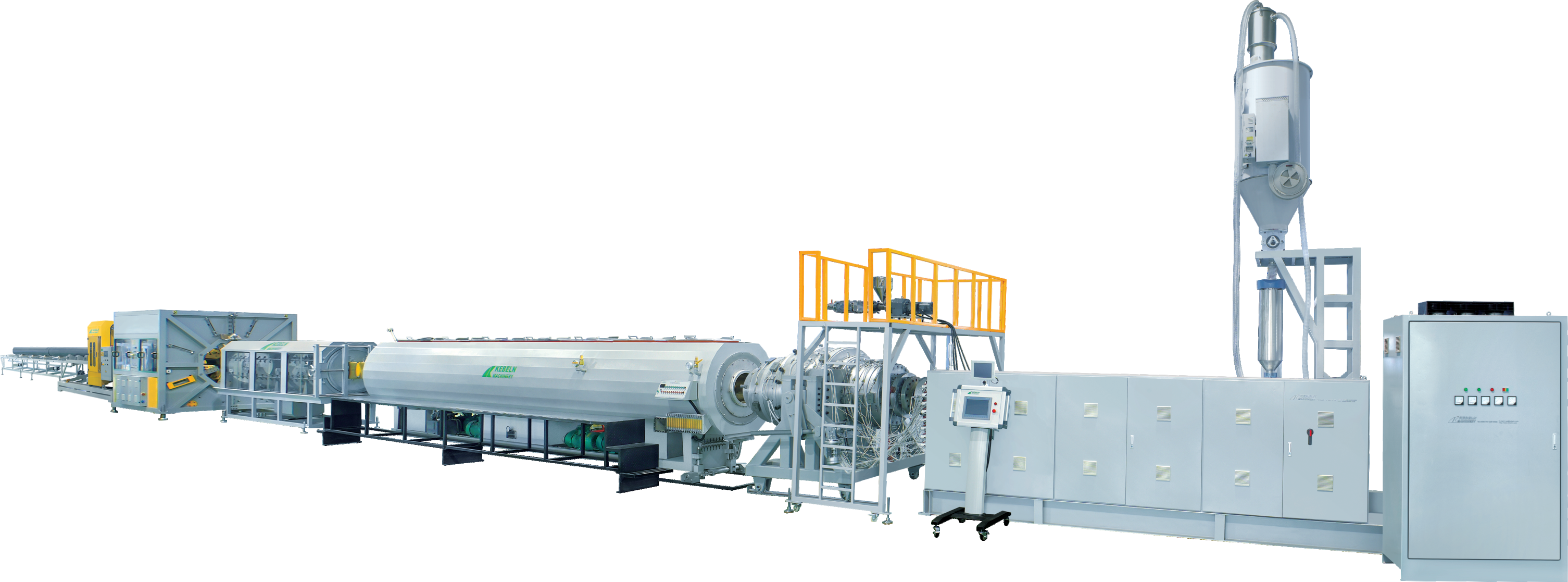

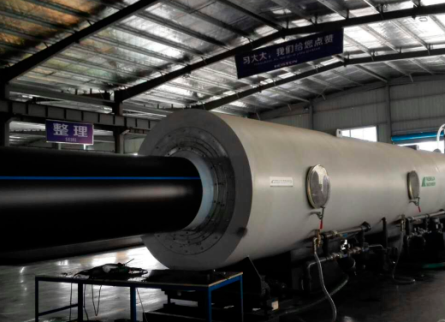

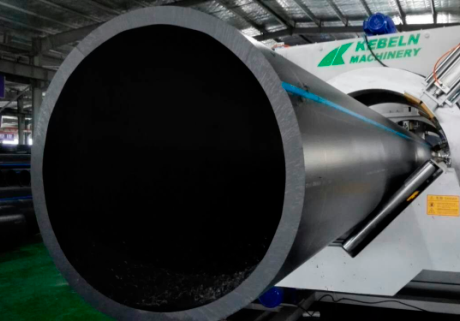

This extrusion line is suitable for producing all kinds of PE/PPR pipes of water supply, draining or industrial cable pipe. The main machine of this extrusion line is the single screw extruder, vacuum forming bath, spray water cooling bath, traction machine, cutter and product stacker. The single screw extruder and tractor machine adopt the imported AC frequency inverter. The vacuum pump and haul off motor use high quality product. According to different sizes of pipes, there are different designs of traction machine in two, three, four, six, eight, ten and twelve pedrails respectively. There are three designs of cutter in saw cutting, chipless cutting and planetary cutting with PLC control. KEBELN also provide special machines for producing spiral pipe, hollow pipe and foam-core pipe in PP, PE, PE-RT, PPR, PEX by exchanging suitable extruders and accessorial machines. Planetary cutting machine adopts fully automatic computer control, with convenient operation and reliable performance, reached the international leading level.

Main Technical Parameter

Model	Pipe range (mm)	Extruder model	Max. Output (kg/h)	Motor Power (kW)	Length of production line (m)
KBL-63PE	16–63	KBD50/38	300	75	35
KBL-110PE	20–110	KBD60/38	380	90	36
KBL-160PE	50–160	KBD60/38	450	110	40
KBL-250PE	50–250	KBD75/38	650	160	45
KBL-315PE	90–315	KBD90/36	800	200	46
KBL-450PE	160–450	KBD90/38	950	250	50
KBL-630PE	315–630	KBD90/38	950	250	65
KBL-800PE	315–800	KBD120/38	1300	355	68
KBL-1200PE	630–1200	KBD120/38	1300	355	75
KBL-1600PE	1000–1600	KBD90/38 & KBD90/38	1900	250+250	95
